Nishi-Kyushu Shinkansen Nagasaki Station

Nagasaki-shi, Nagasaki
Nishi-Kyushu Shinkansen Nagasaki Station

A great roof creates new scenery for Nagasaki

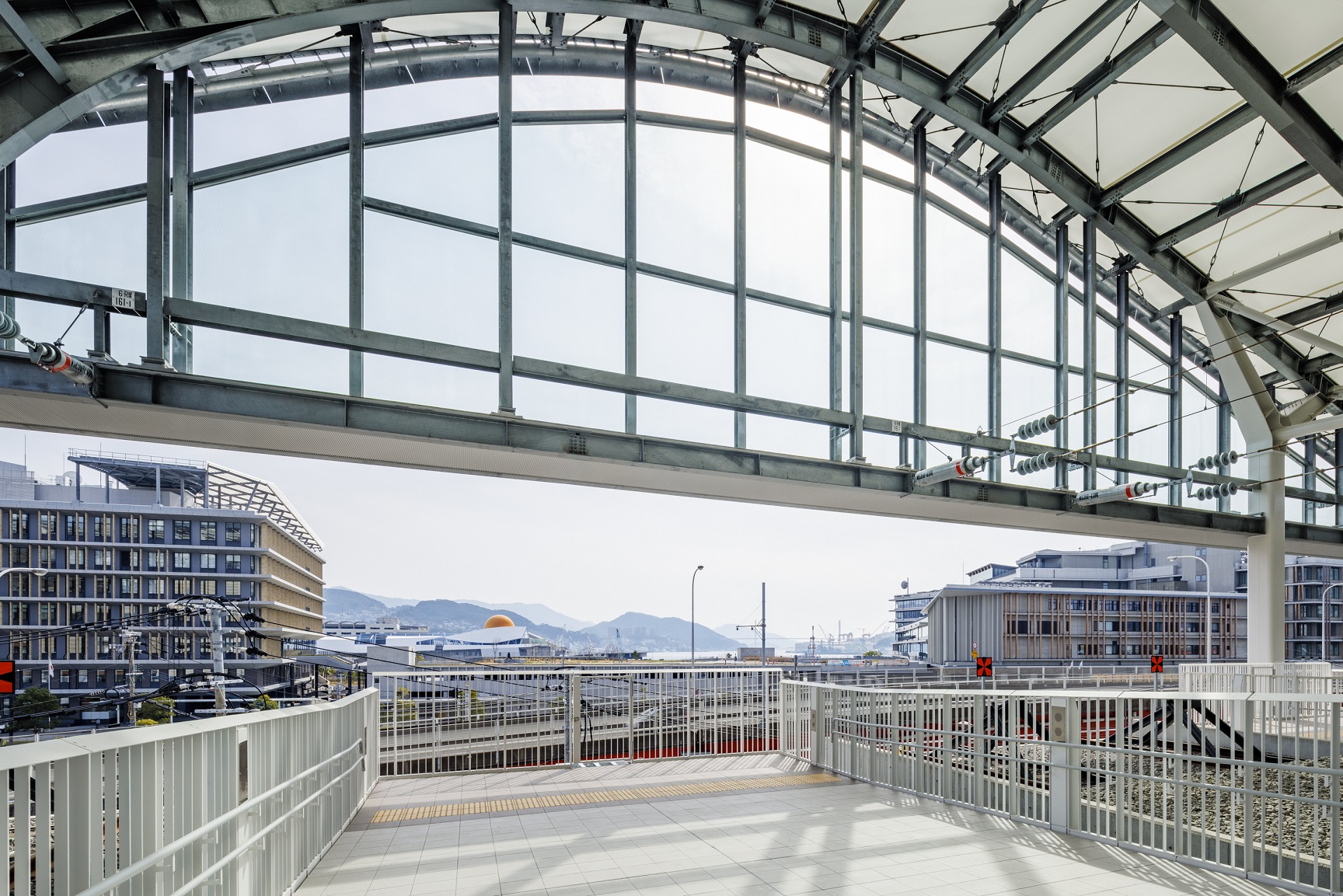

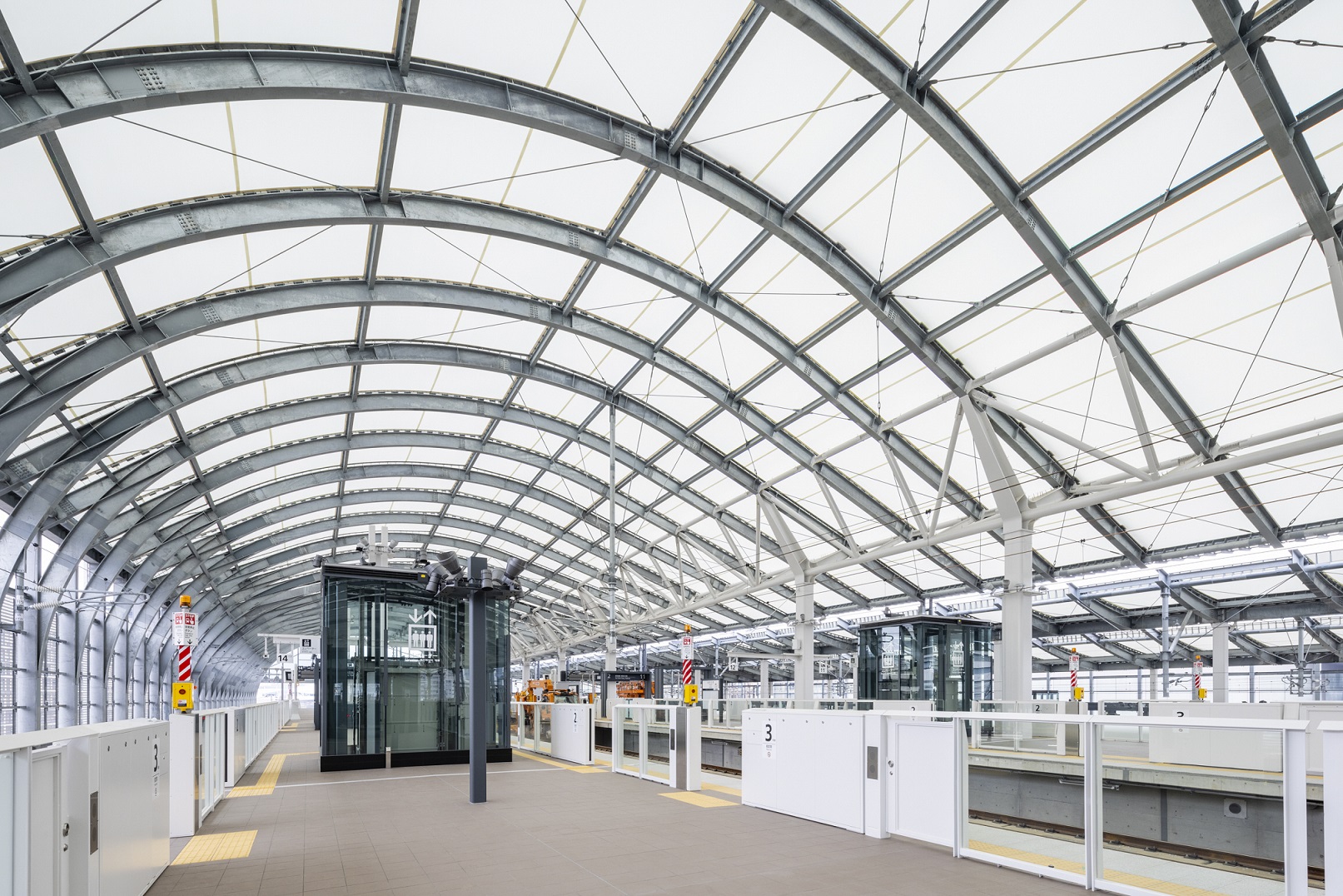

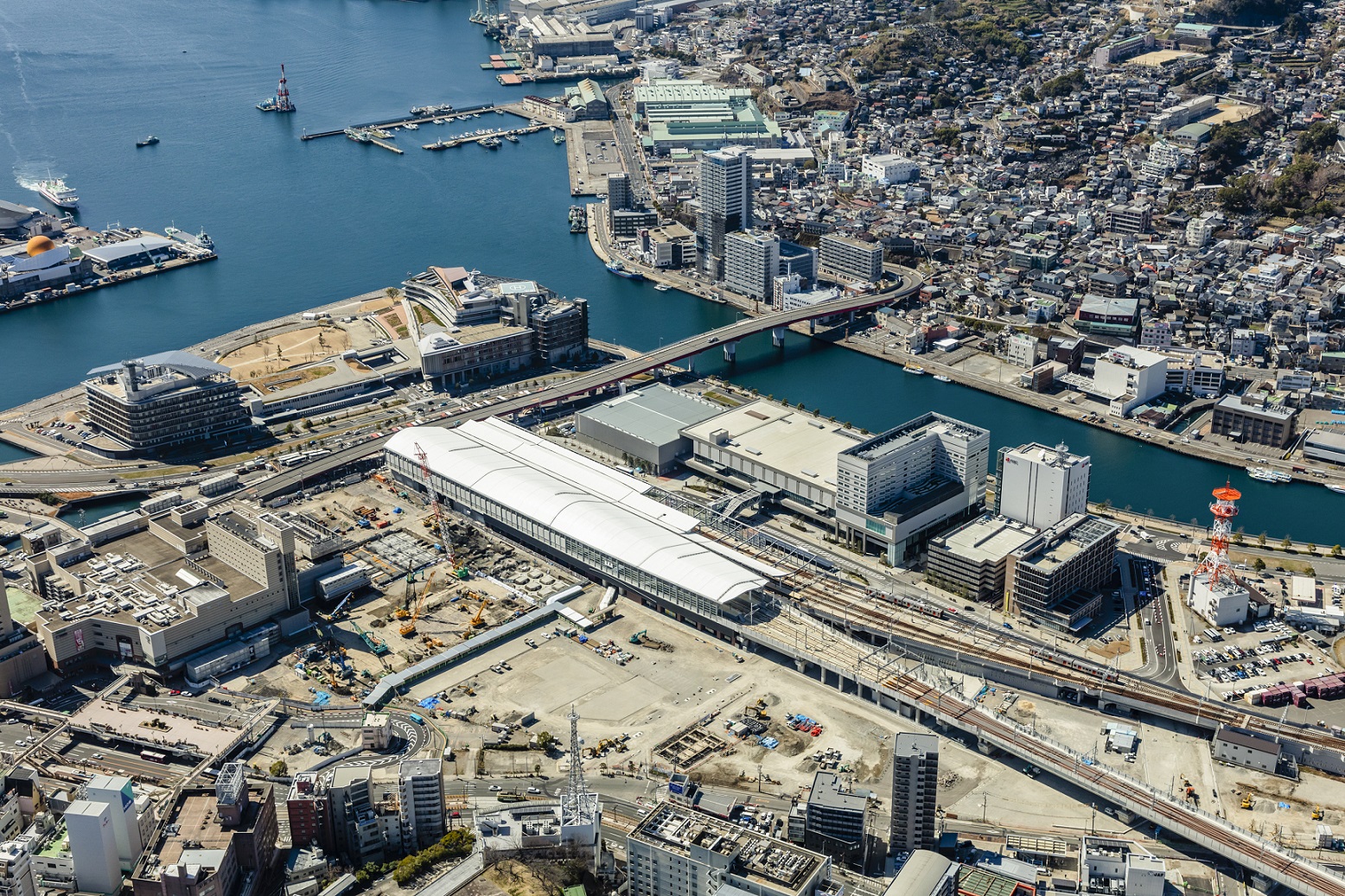

Nagasaki Station has undergone a once-in-a-century transformation. With the opening of a new Shinkansen line and the elevation of the conventional local train track, the station was redeveloped to integrate the two railways into a single structure. The design of the new station aimed to be a suitable new entrance to the city, with both lines enveloped by a unifying grand roof to create a bright and open platform. It is the first instance of membrane roofing ever used on a Shinkansen platform in Japan, and its three-dimensional movement toward the sea gives the platform a sense of dynamism, making it a landmark for Nagasaki. The complex steel frame structure that supports the roof was carefully verified for volume and shape using BIM, and the curvature and composition were standardized for each component to achieve a rational structure.

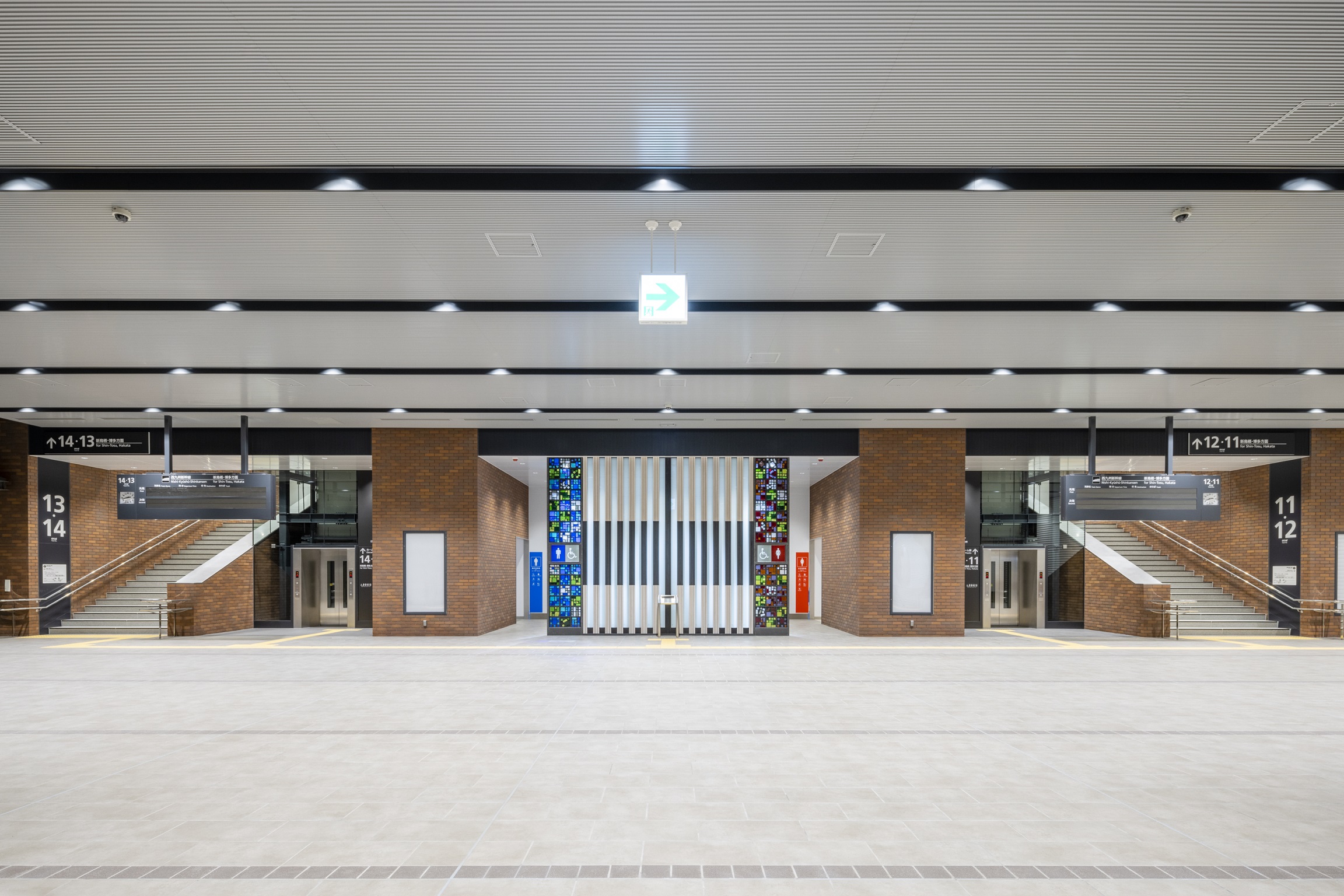

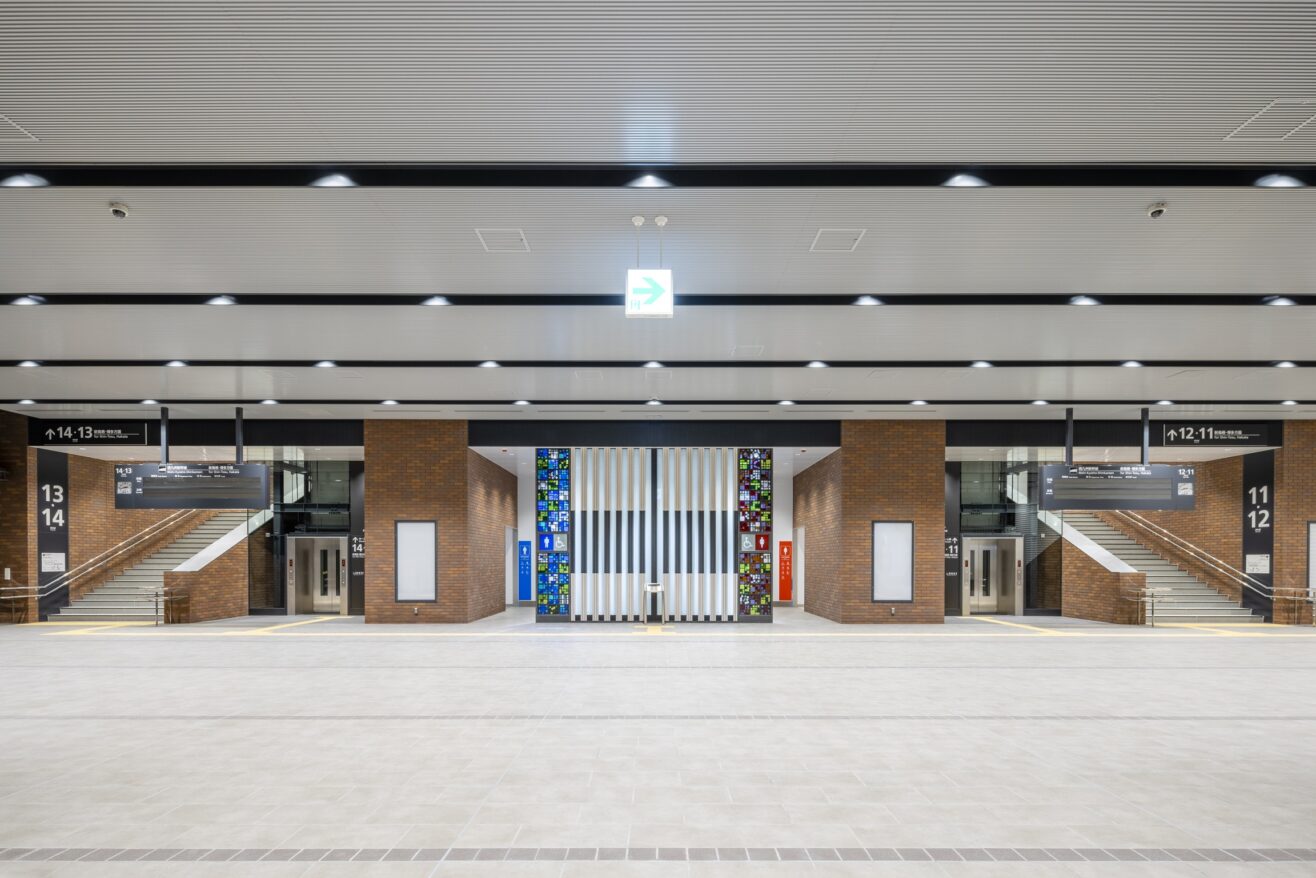

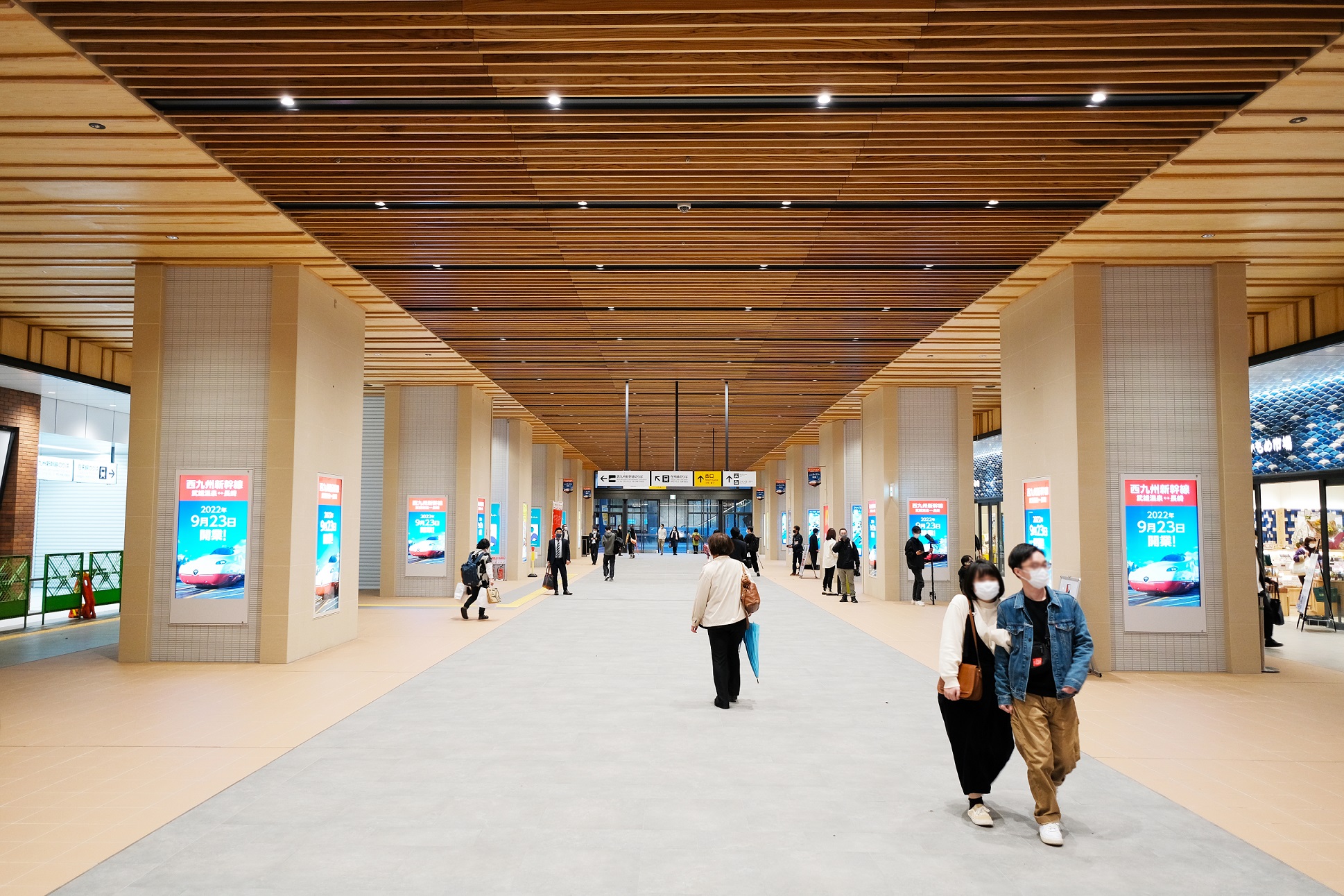

In the concourse, materials originated in Nagasaki, such as brick tiles, steel, and wood, were used to create a space that evokes a sense of history and culture.

Category
Transportation Facilities
Solutions
Providing Safe and Secure Buildings
Awards
The 67th Association of Railway Architects Award, Depot Architecture Award
Share

Work data

Client
Japan Railway Construction, Transport and Technology Agency
Location
Nagasaki-shi, Nagasaki
Structure
Reinforced concrete, partly steel structure
Number of floors
2 above-ground levels
Total Floor Area
4,760m²
Completion
March 2022
Building Use
Station building
Photo Credit
Japan Railway Construction, Transport and Technology Agency, SS Co., Ltd.
